Finished my wvo filtration system

Postby Rkmcdon » Mon Feb 24, 2014 5:35 pm

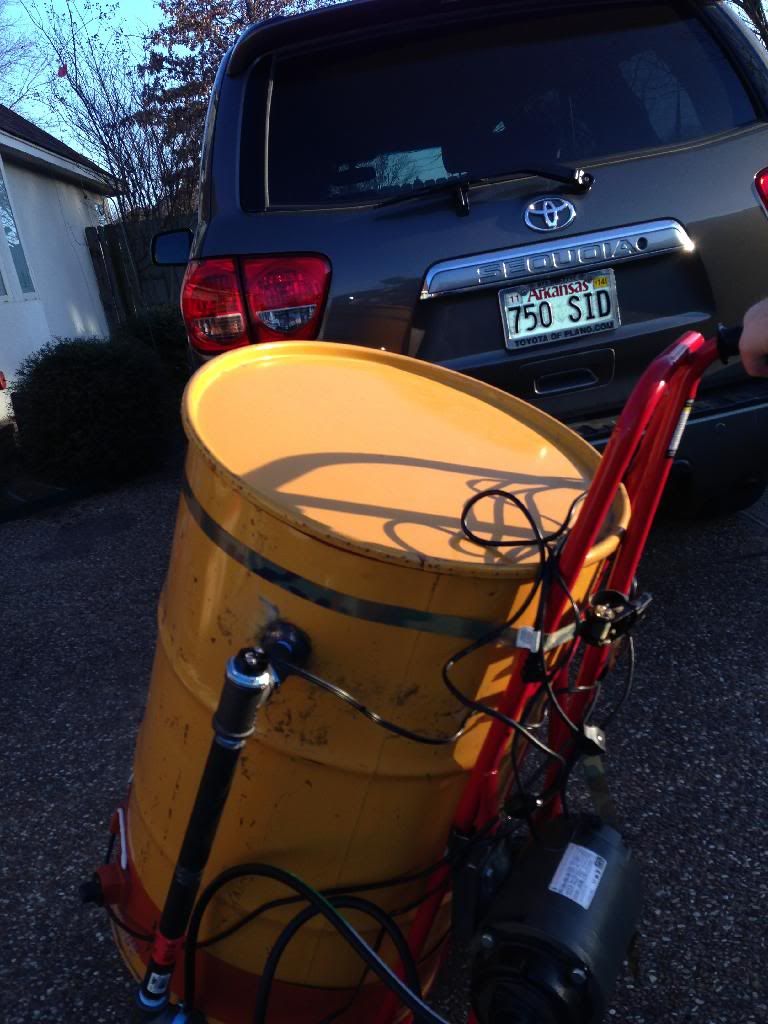

Just wanted to post up some picks of my wvo filtration system. Based it off of Sunwizards write up with only a few modifications. I have about 20 gallons of wvo and have secured 3 local sources of wvo. I am doing a frame off resto mod of a 1979 Toyota FJ55 Land Cruiser and will be swapping in a Cummins 4bt diesel with a 2 tank heated system.

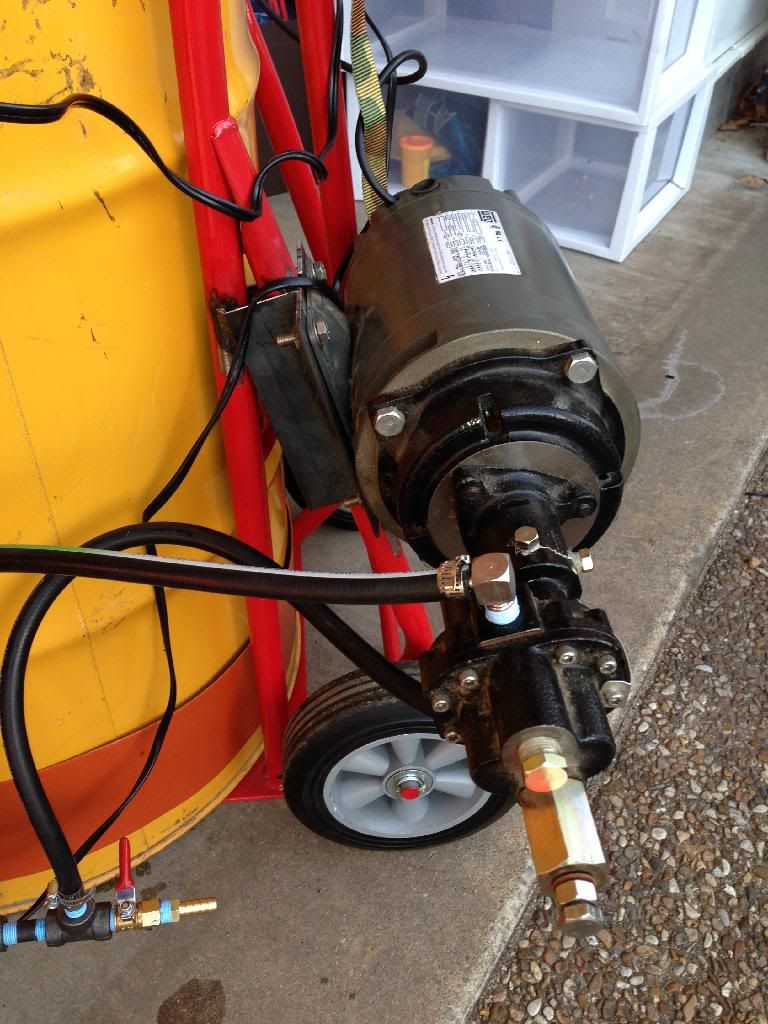

I bought the Dayton pump off ebay for $180 (you can get cheaper but couldn't pass on this pump at this price)

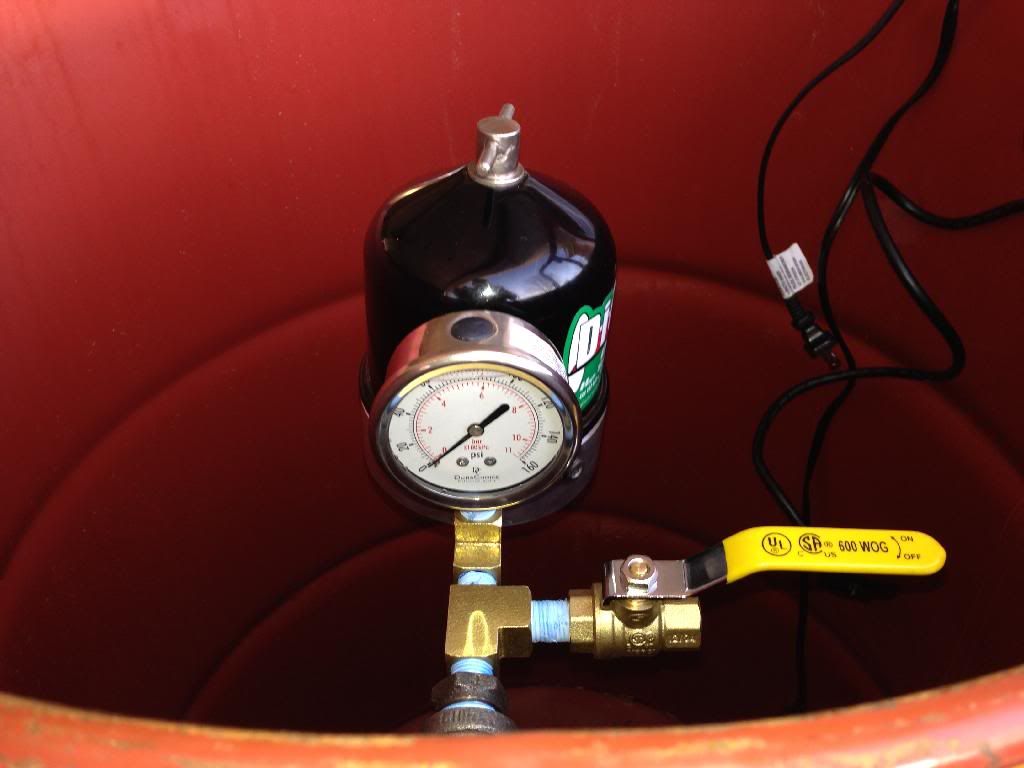

The centrifuge from Dieselcraft
Dolly was $35 from Harbor Freight

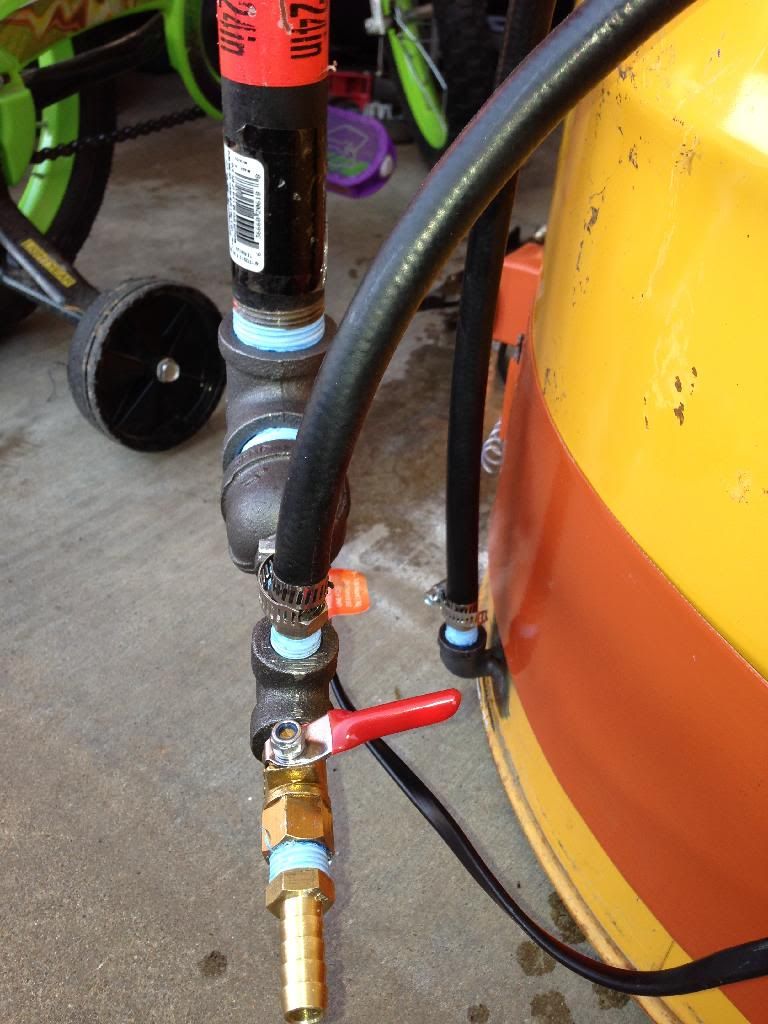

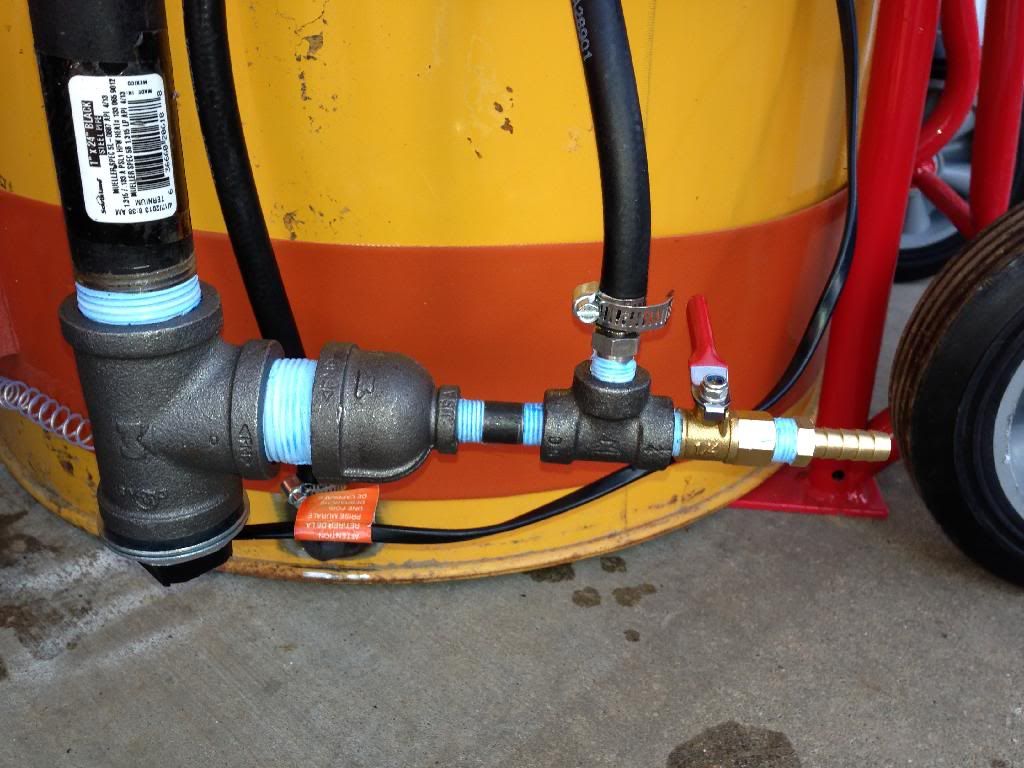

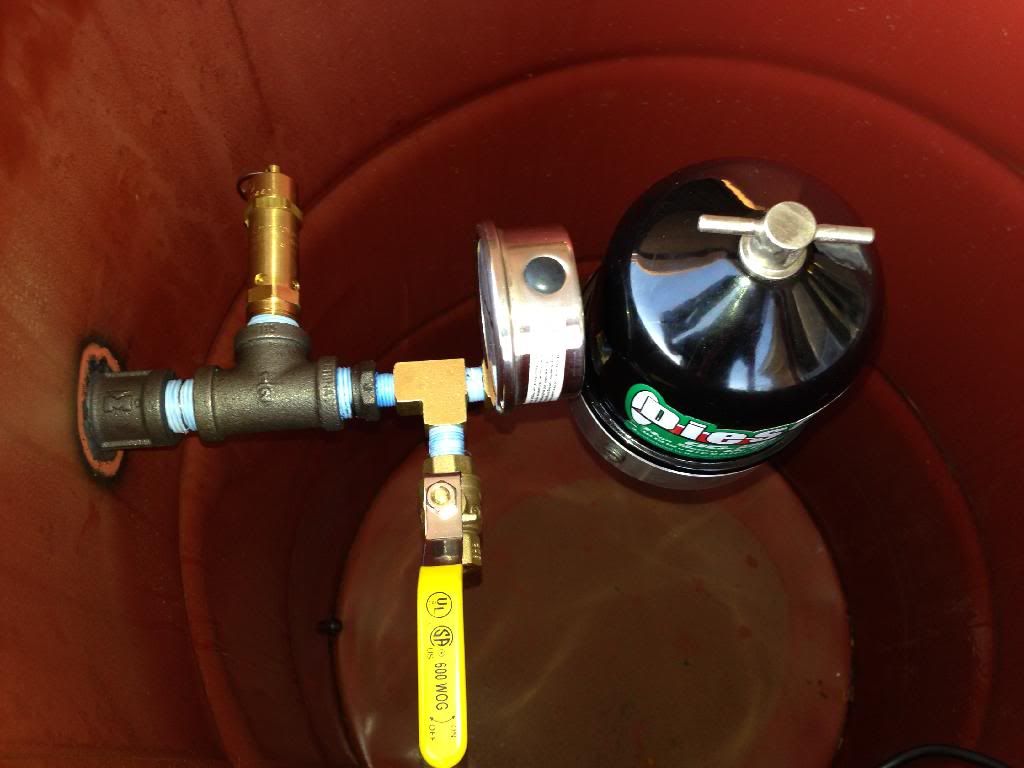

The 1/4" fittings and pressure relief valve from grainger
The 55 gallon barrel with lid ($15) water heater elements and all the other fittings from ACE hardware








1969 FJ55 Project - Planned: 4bt swap, spring over, locking diffs, 35" BFG MT's and of course...veggie power!
Rkmcdon

Posts: 13
Joined: Thu Oct 24, 2013 6:39 pm

Re: Finished my wvo filtration system

Postby White99z » Thu Mar 13, 2014 10:44 am

This setup looks great! What motor are you using to power the pump?
White99z

Posts: 71
Joined: Thu Mar 13, 2014 10:34 am
